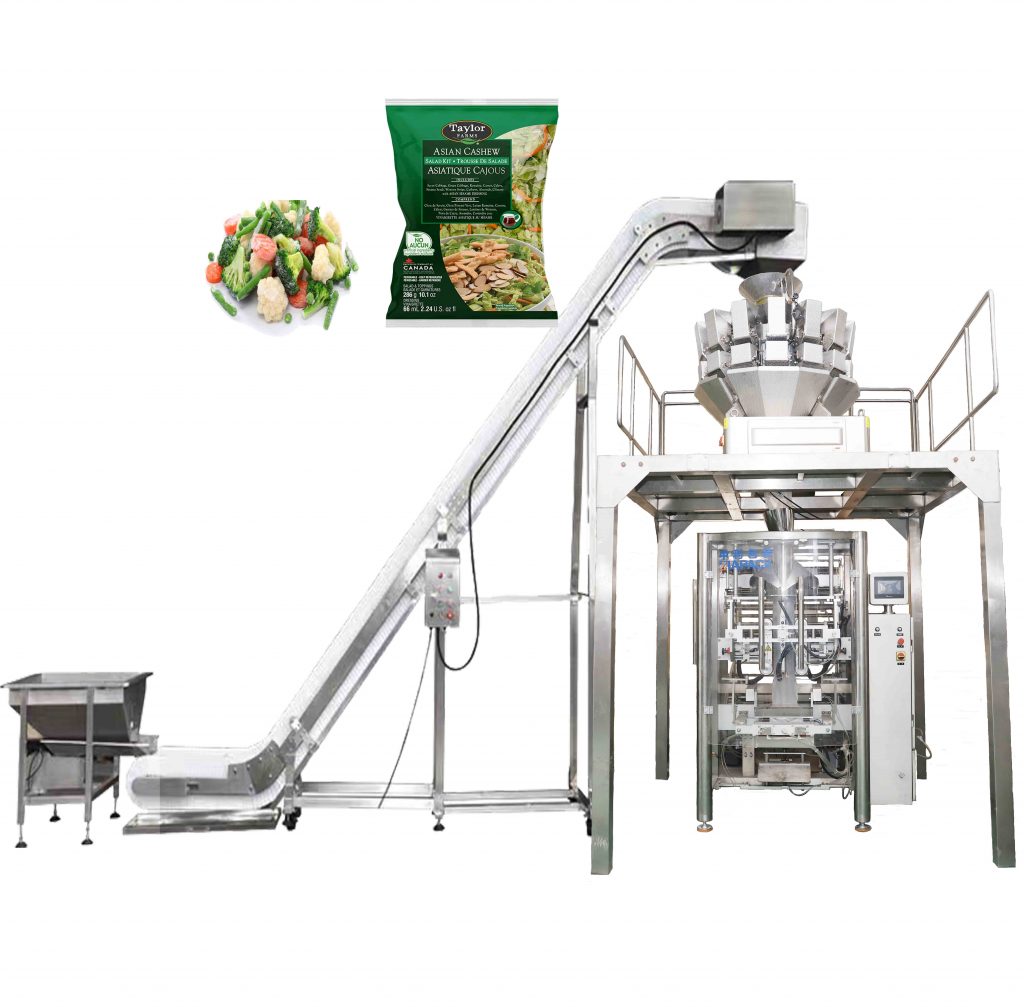

ZL720 Automatic bag forming filling sealing packaging machine for salad
บทนำ : This unit machine is special design for packaging piece vegetable in to plastic bag . Such as cutting cabbage cucumber Slices Broccoli and so on .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag
พารามิเตอร์ทางเทคนิค:
Packing speed(MAX): 20-50bags/min
Bag type: pillow bag .gusseted bag
Bag size: bag width 80-350mm bag length 120-450mm
ปริมาณการใช้ลมอัด: 0.6 MPa 350 L/นาที
Electric requirement: 380V/5.5 kW50 Hz
Main Features and Characteristics
A wide range of pouches: pillow bag,Can make gusseted bag,flat bottom bag by change device
High speed: More than 20-60 bags/min
ใช้งานง่าย: ตัวควบคุม PLC และหน้าจอสัมผัสสี ตัวบ่งชี้ข้อผิดพลาดบนหน้าจอสัมผัส
ง่ายต่อการปรับเปลี่ยน: เพียงประมาณ 10 นาทีเพื่อเปลี่ยนกระเป๋าที่แตกต่างกัน
การควบคุมความถี่: ความเร็วสามารถปรับได้โดยการแปลงความถี่ภายในช่วง
ระบบอัตโนมัติที่สูง: ไม่มีกำลังใจในกระบวนการชั่งน้ำหนักและบรรจุเครื่องปลุกอัตโนมัติเมื่อความล้มเหลว
Safety and Hygiene
ไม่มีฟิล์มเครื่องจะปลุก
ปลุกเครื่องและหยุดเมื่อความดันอากาศไม่เพียงพอ
ยามรักษาความปลอดภัยที่มีสวิทช์ด้านความปลอดภัยแจ้งเตือนเครื่องและหยุดการทำงานเมื่อมีการเปิดตัวป้องกันความปลอดภัย
โครงสร้างที่ถูกสุขอนามัย ส่วนสัมผัสของผลิตภัณฑ์เป็นเหล็กกล้าไร้สนิม sus304
Bag type :
